Pre-Roll Labeling System (PL-521)

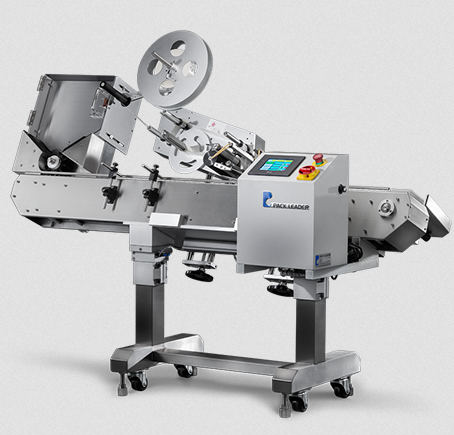

The PL-521 Horizontal tube labeler is high volume and maximum output commercial grade machine, specifically designed to accommodate horizontal labelling of slim, non-freestanding cylindrical containers.

Horizontal labeling for oddly-shaped containers; check out the PL-521 in action.

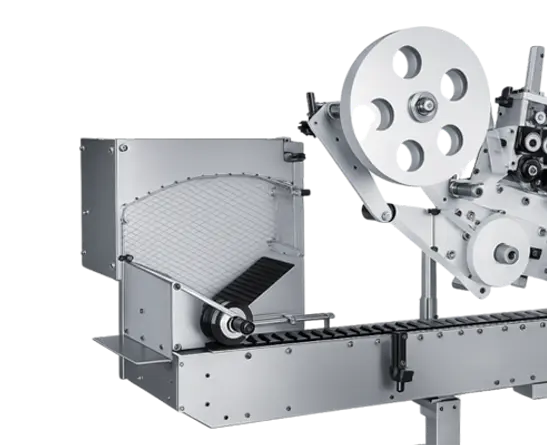

The product is fed by a stainless steel gravity hopper that deposits the label onto the roller chain conveyor by means of our dual I/O placement. Apply your tube labels accurately, each and every time.

Flexible and Efficient

Flexibility and accuracy

The angled roller conveyor accommodates fragile and oddly-shaped containers with labels placed accurately on the product.
Every single time.

Efficiency and practicality

The PL-521 locates missing labels on the roll and if found, instantly shuts the machine down to ensure each product is labeled correctly. No more wasted time.

Productivity at its finest

Track progress, set the exact amount of products to be labeled and rest assured it's right every time. Saving your business valuable time and energy.

Take your business to the
next level in production.

Time Saved > Time Wasted

Set the bar high

The ultimate in productivity and accuracy for each and every pre-roll you sell. Set it up and let it do the work for you.

Durability = a solid choice

The PL-521 is made of 304 stainless steel and anodized aluminum, specifically designed to accommodate horizontal labeling of non-freestanding tubes.

Automate production

Auto label-set feature confirms label sensitivity by detecting the separation between each label, ensuring the right fit, every time.

Dependable wrap around system
for pre-roll tubes

Learn More

Technical Specifications

  1. Dimensions
  2. L-W-H: 78" x 42" x 64"
    (1981mm x 1067mm x 1626mm)
  3. Maximum Label Size: 6" x 3"
    (H 152mm x L 75mm)
  4. Bottle Diameter: 0.3" - 1"
    (7.6mm - 25mm)
  5. Range of Container Length: 0.25" - 6"
    (6.5mm - 152mm)
  6. Conveyor Width: 4" (102mm)
  7. Spool Diameter: 14" (356mm)
  8. Inner Core: 3" (76mm)
  1. Speed
  2. Maximum Dispensing Speed: 131.2'/min (40m/min)
  3. Maximum Conveyor Speed: 72.2'/min (22m/min)

  4. Net Weight
  5. Approx. 385 lbs (175 kg)

  6. Conveyor Height
  7. 34-44" (864-1118mm)
  1. Power
  2. Voltage:
    110/220 VAC 50/60 HZ
  3. Power in KW: 840
  4. Drive: Stepper Motor
